| 型號Model | FS4030 | FS6650 | FS8080 | FS9080 |
| 電機功率(kw) | 1.5 | 7.5 |
2x11 |
2x22 |
|
出料高度H1（mm) |
520 | 600 | 700 | 985 |

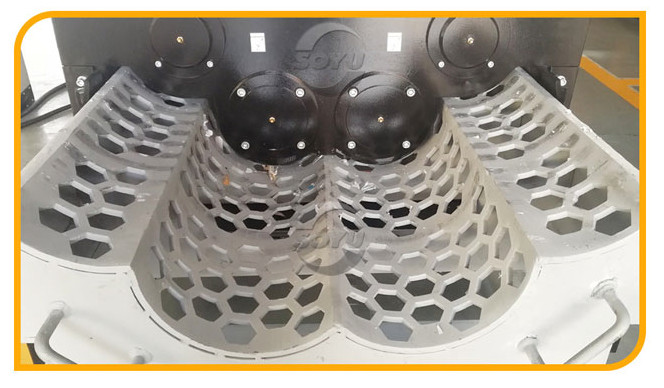

| 篩網(wǎng)孔徑（mm) |
Φ20 |
Φ20 |
Φ25 |
Φ40 |
|
粉碎室有效尺寸(mm) |
400x300 | 660x500 | 800x800 | 900x800 |
|
外形尺寸（L*W*H)(mm) |
850x600x1650 | 1600x800x1940 | 2360x1200x2065 | 2690x1450x2450 |
| 重量(kg) | 600 |
1000 |
2000 |
3700 |
| 型號Model | FS100100 | FS100120 | FS130100 | FS130140 |
|
電機功率(kw) |
2x30 |
2x30 |
2x15+2x30 |
2x15+2x30 |
|
出料高度H1（mm) |
900 | 900 | 1328 | 1328 |
|
篩網(wǎng)孔徑（mm) |
Φ40 |
Φ40 |
Φ60 |
Φ60 |
|
粉碎室有效尺寸(mm) |
1000x1000 | 1000x1200 | 1300x1000 | 1300x1400 |
|
外形尺寸（L*W*H)(mm) |
2820x1800x2500 | 3020x1800x2500 | 3550x2000x3100 | 3850x2000x3100 |
|
重量(kg) |
6800 |
7400 |
11500 |
13500 |
| 型號Model | FS130120 | FS130180 | FS160160 | FS160200 |
|
電機功率(kw) |
2x15+2x30 |
2x15+2x30 |
2x30+2x45 |
2x30+2x55 |
|
出料高度H1（mm) |
1328 | 1328 | 1400 | 1400 |
|
篩網(wǎng)孔徑（mm) |
Φ60 |
Φ60 |
Φ60 |
Φ60 |
|
粉碎室有效尺寸(mm) |
1300x1200 | 1300x1800 | 1600x1600 | 1600x2000 |
|
外形尺寸（L*W*H)(mm) |
3650x2000x3100 | 4250x2000x3100 | 4360x2200x3630 | 4560x2200x3630 |
|
重量(kg) |
12500 |
15500 |
18000 |
19000 |
